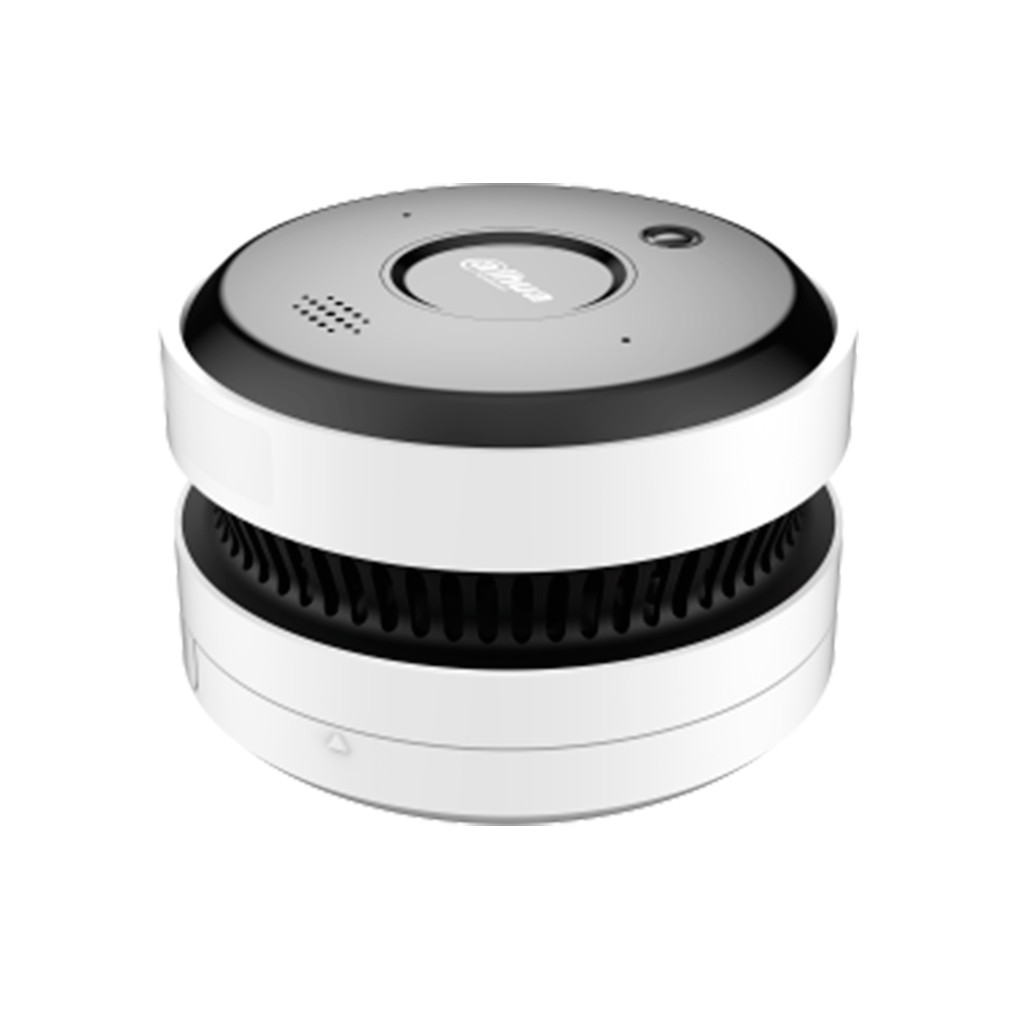

DHI-HY-SAV849HAP-E Камера с датчиком дыма

Smoke DetectorIndicatorsStandby: Green indicator flashes once per minuteFault: Red indicator flashes once per minuteAlarm: Red indicator flashes once per secondSelf-testing: Red indicator flashes once per secondProtection Area30 m2–60 m2Operating PrinciplePhotoelectricAlarm MethodSound and LED IndicatorPower12V DC/PoE and 3V lithium batteryOperating Current≤ 30uA (Camera excluded)≤ 300mA (Camera included)Back-up Battery Life ＞ 3 yearsAlarm ClassificationSmoke alarm, fault alarm, low battery alarmAlarm Sound Pressure≥ 80 dB (A) @ 3 m (9.84 ft)Network CameraAppearanceCircularImage Sensor1/2.7" CMOSMax. Resolution2592 (H) × 1944 (V)Scanning SystemProgressiveElectronic Shutter SpeedAuto/Manual 1/3s~1/100000sMinimum Illumination 0.007Lux (color) 0.003Lux (dark) 0Lux (IR)S/N Ratio ＞ 56 dB Illumination DistanceDistance up to 20 m (65.62 ft)Illuminator Number2 (IR LED)LensLens TypeFixed-focalMount TypeM8Focal Length2.0 mmApertureF2.0Field of ViewHorizontal: 144°; Vertical: 92°; Diagonal: 179.6°Iris ControlFixedClose Focus Distance0.2 m (0.66 ft)Artificial IntelligenceAI EventFlame detectionVideoImage SettingBrightness; contrast; sharpness; saturation; gammaOSDChannel/time/place/voltage of back-up batteryVideoManual record; external alarm; alarm video record; timing recordMicro SD Card Max. 256 GB CompressionH.265; H.264; H.264H; H.264BSmart CodecSmart H.265+/ Smart H.264+Frame RateMain stream:2592×1944 (1 fps-20 fps)2688×1520 (1 fps–25/30 fps)2560×1440 (1 fps–25/30 fps)2304×1296 (1 fps–25/30 fps)1920×1080 (1 fps–25/30 fps)Sub stream:D1 (1 fps–20 fps)D1 (1 fps–25/30 fps)Third stream:1920×1080 (1 fps-17/24 fps)Video Bit RateH.264: 32 Kbps–10240 KbpsH.265: 12 Kbps–7168 KbpsDay/NightAuto (ICR)BLCYesHLCYesWDR90 dBWhite BalanceAuto/natural/street lamp/outdoor/manual/regional customGain ControlAuto; manualNoise Reduction3D NRDefault Frame Rate under Default Resolution2048 Kbps (2688 × 1520)DefogYesImage rotation, mirroring, flippingYesPrivacy Masking8 areasLanguageEnglish; TradChinese; Italian; Spanish; Japanese; Russian; French; German; Portuguese; Turkish; Polish; Romanian; Hungarian; Korean; Czech; Dutch; Ukrainian;Vietnamese; Arabic; SpanishEU; Hebrew; Thai; Bahasa IndonesiaAudioAudio InterfaceYesBuilt-in MICYesBuilt-in SpeakerYesAudio CompressionPCM; G.711a; G.711Mu; G.726; AAC; G.723Audio Sampling Frequency8KHz/16KHz/32KHz/48KHz/64KHzAlarmAlarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; smart motion detection; audio detection; flame detection; smoke detected alarm; fault alarm; smoke alarm disconnected; low battery alarmNetworkCommunication1 RJ-45 PoE 10M/100M Ethernet portsProtocolHTTP;TCP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;SNMP;QoS;UPnP;NTPInteroperabilityONVIF; MileStone; Genetec; CGI; PISAUser10 channels at mostStorageFTP; SFTP; Micro SD card (256G); NASBrowserIE7 and newer versions; Chrome 8+; Firefox 3.5+; Safari 5+SecurityAuthorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1X; controlled network accessCertificationCertification CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B PortAudio Input1 channel (RCA port)Audio Output1 channel (RCA port)Alarm Input Interface2 channels In: 5mA 5V DCAlarm Output Interface2 channels Out: 300mA 12V DCRS 485 Port1 channelElectricalOperating PowerAdapter: 12V DC(±25%); PoE: 802.3afPower SupplyDC12V+PoEPower ConsumptionBasic power consumption: 2.1W (12V DC); 2W (PoE)Max. power consumption (ICR + IR LED intensity): 4.9W (12V DC); 4.8W (PoE)EnvironmentalOperating Temperature–10°C to +55°C (+14°F to +131°F)Operating Humidity0%–95% RH (non-condensing)ConstructionCasingPlasticProduct DimensionsΦ120 mm × 79 mm (Φ4.72" × 3.11" )Package Dimensions164 mm × 153 mm × 111 mm (6.46" × 6.02" × 4.37")(L × W × H)Net Weight442 g ( 0.98 lb)Gross Weight613 g ( 1.35 lb)InstallationCeiling mountPower AdapterExcludedLensIncluded
