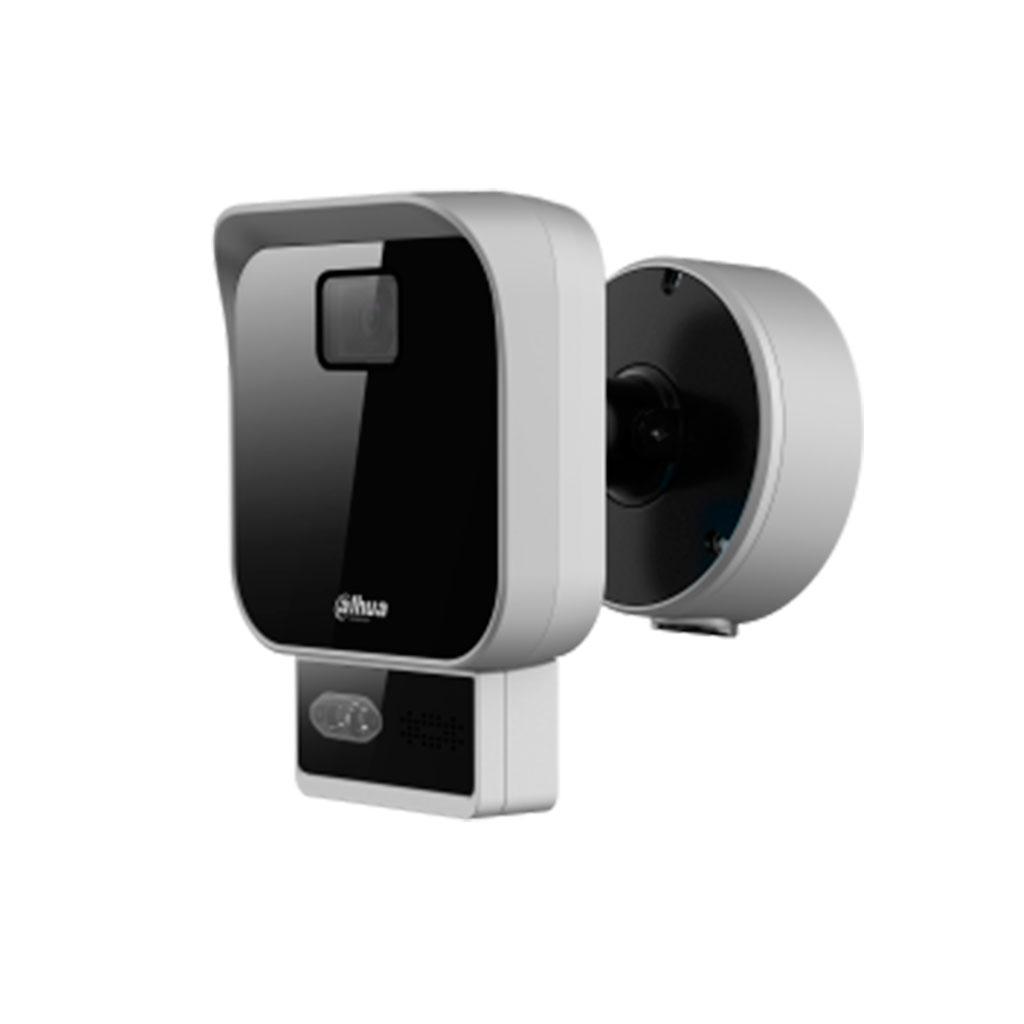

DH-PFR5QI-E60 Светозвуковой видеорадар
- В наличии
- Код: DH-PFR5QI-E60
9 999 999 ₸
Купить
+7 (727) 222-33-59
- +7 (702) 215-22-62
возврат товара в течение 14 дней по договоренности
DH-PFR5QI-E60 Светозвуковой видеорадарВ наличии
9 999 999 ₸
Описание
Характеристики
Информация для заказа
RadarMax. Target Number64Distance60 m (196.85 ft)AngleHorizontal: 120°Pitch angle: 26°Distance Accuracy±0.5 m (1.64 ft)Angle Accuracy±1°Max. Detection Speed80 km/h, continuous traceMin. Detection Speed0.72 km/h, continuous traceModulation MethodFMCWScan Frequency20 HzWorking Frequency60 GHz–61 GHzSupported Target TypeHuman; vehicleTransmission Power< 20 dBm (100mW)CameraImage Sensor1/1.8" CMOSPixel4MPMax. Resolution2560 (H) × 1440 (V)Electronic Shutter Speed1/3 s–1/100000 sMin. Illumination0.0036 Lux @F1.6 (Color); 0.0036 Lux @F1.6 (B/W); 0 Lux (IR on)S/N Ratio> 56 dBIllumination Distance35 m (114.83 ft) (0°, visible human body shape)Illuminator Number4LensLens TypeFixed-focalLens MountM16Focal Length2.8 mm (equivalent focal distance of 1/2.7")Max. ApertureF1.6Field of ViewHorizontal: 104°; Vertical: 55°; Diagonal: 121°Iris ControlFixedClose Focus Distance0.2 mVideoVideo CompressionH.265; H.264; H.264H; H.264BSmart CodecH.264/H.265Video Frame RateMain stream:50 Hz: 25 fps (2560 × 1440); 25 fps (2048 × 1536); 25 fps (1920 × 1080); 25 fps (1280 × 960); 25 fps (1280 × 720)60 Hz: 30 fps (2560 × 1440); 30 fps (2048 × 1536); 30 fps (1920 × 1080); 30 fps (1280 × 960); 30 fps (1280 × 720) 50 Hz: 25 fps (704 × 576); 25 fps (352 × 288)60 Hz: 30 fps (704 × 480); 30 fps (352 × 240) Third stream:50 Hz: 25 fps (1920 × 1080); 25 fps (1280 × 960);25 fps (1280 × 720)60 Hz: 30 fps (1920 × 1080); 30 fps (1280 × 960);30 fps (1280 × 720)Video Bit RateH.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 KbpsDay/NightColor/B/WBLCYesHLCYesWDR102 dBWhite BalanceAuto/manual/natural/street lamp/outdoorGain ControlAuto/manualNoise Reduction2D NR/3D NRDefault Bit Rate with Default Resolution6144 Kbps (2560 × 1440)
| Основные атрибуты | |
|---|---|
| Производитель | Dahua Technology |
- Цена: 9 999 999 ₸
