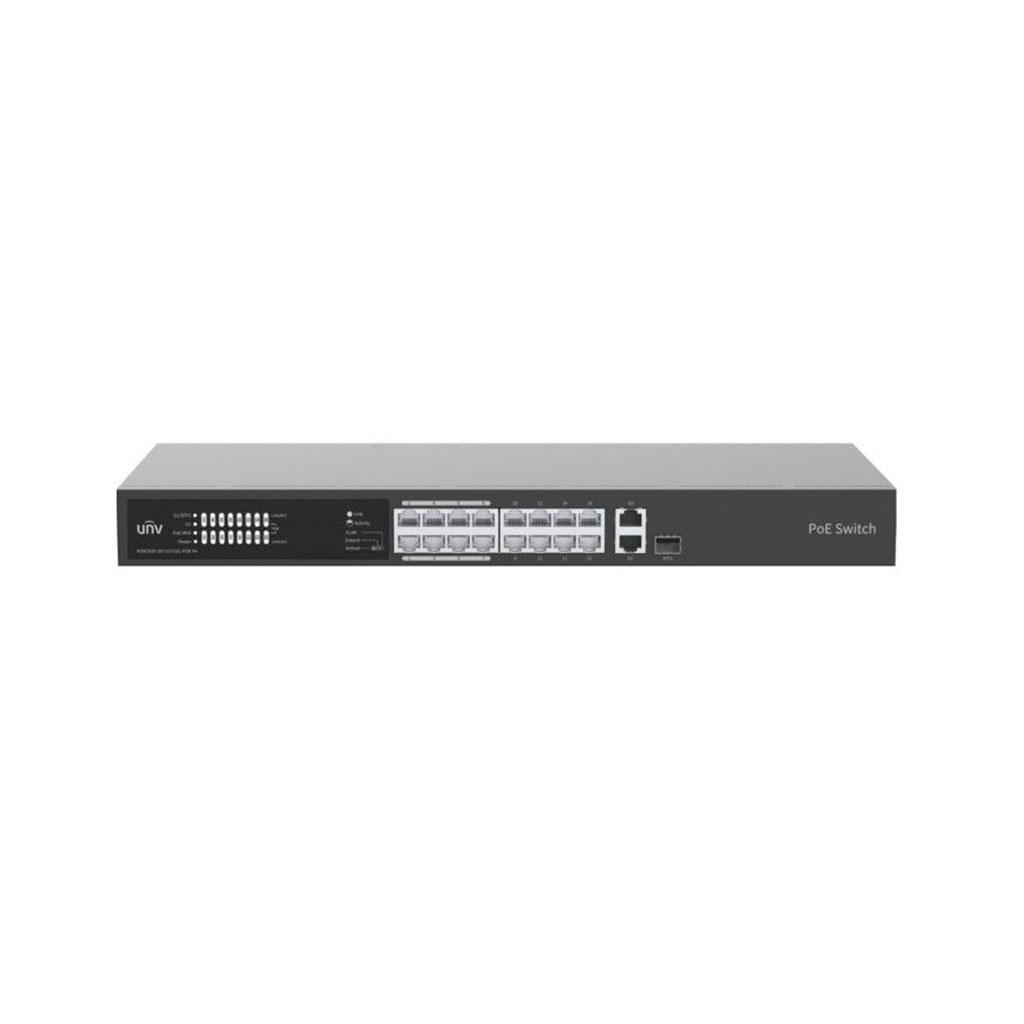

NSW2020-16T1GT1GC-POE-IN Коммутатор Ethernet PoE

NSW2020-16T1GT1GC-POE-IN Коммутатор Ethernet PoE

  • В наличии
  • Код: NSW2020-16T1GT1GC-POE-IN

165 850 ₸

+7 (727) 222-33-59
  • +7 (702) 215-22-62
возврат товара в течение 14 дней по договоренности
NSW2020-16T1GT1GC-POE-IN Коммутатор Ethernet PoE
NSW2020-16T1GT1GC-POE-IN Коммутатор Ethernet PoEВ наличии
165 850 ₸
+7 (727) 222-33-59
  • +7 (702) 215-22-62
Описание
Характеристики
Информация для заказа
ModelNSW2020-6T-POE-INNSW2020-10T-POE-INNSW2020-16T1GT1GC-POE-INNSW2020-24T1GT1GC-POE-INPorts6×100Mbps network ports (RJ45), including 4 PoE ports10×100Mbps network ports (RJ45), including 8 PoE ports16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo portsStandardsIEEE802.3,IEEE802.3u,IEEE802.3az, IEEE802.3x,IEEE802.3af,IEEE802.3atIEEE802.3,IEEE802.3u,IEEE802.3z, IEEE802.3ab, IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3azSwitching capacity1.2Gbps2Gbps7.2Gbps8.8GbpsForwarding performance0.90Mpps1.49Mpps5.36Mpps6.55MppsPacket Buffer448Kbit448kbit4M bit4MbitMAC1K1K16K16KDimensions (W×D×H)108*100*25.5mm171*101*25.5mm440*189.8*44mm440*244.8*44mmWeight0.19KG0.29KG2.12KG2.93KGPower supplyDC:48/51VAC: 100-240V, 50/60HzPoE802.3at/af (4/5+,7/8-)Max. PoE PowerMax capacity: 60WMax capacity for single port: 30WMax capacity:88WMax capacity for single port: 30WMax capacity: 225WMax capacity for single port: 30WMax capacity: 370WMax capacity for single port: 30WPrior Ports1~21~21~81~8Cooling Fans0011Operating temperature0°C-40°C (32°F-104°F)Operating humidity10%~90% (noncondensing)Storage humidity5%~90% (noncondensing)IndicatorPOWER:Steady on: AC input is normalOff: No AC inputNo PoE IndicatorPoE:Off: No PoE power supplySteady on: PoE power supply is normalPoE-MAX:off :The POE power supply power of the whole machine is less than 80% of the specificationSteady on : The POE power supply power of the whole machine is greater than 85% of the specificationLINK/ACT:Off: No linkSteady on: LinkedFlashing: Transmitting dataWorking ModeDefault(Normal mode) : All ports can communicate with each other.EXTEND(Surveillance mode): Transmission distance up to 250 meters.Default(Normal mode) : All ports can communicate with each other.VLAN(Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time.Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
Основные
ПроизводительUniview
Пользовательские характеристики
БрендUniview
Количество PoE портов16
Количество SFP портов2
Количество комбинированных портов2
Количество портов 1000Mbps2
Количество портов 100Mbps16
