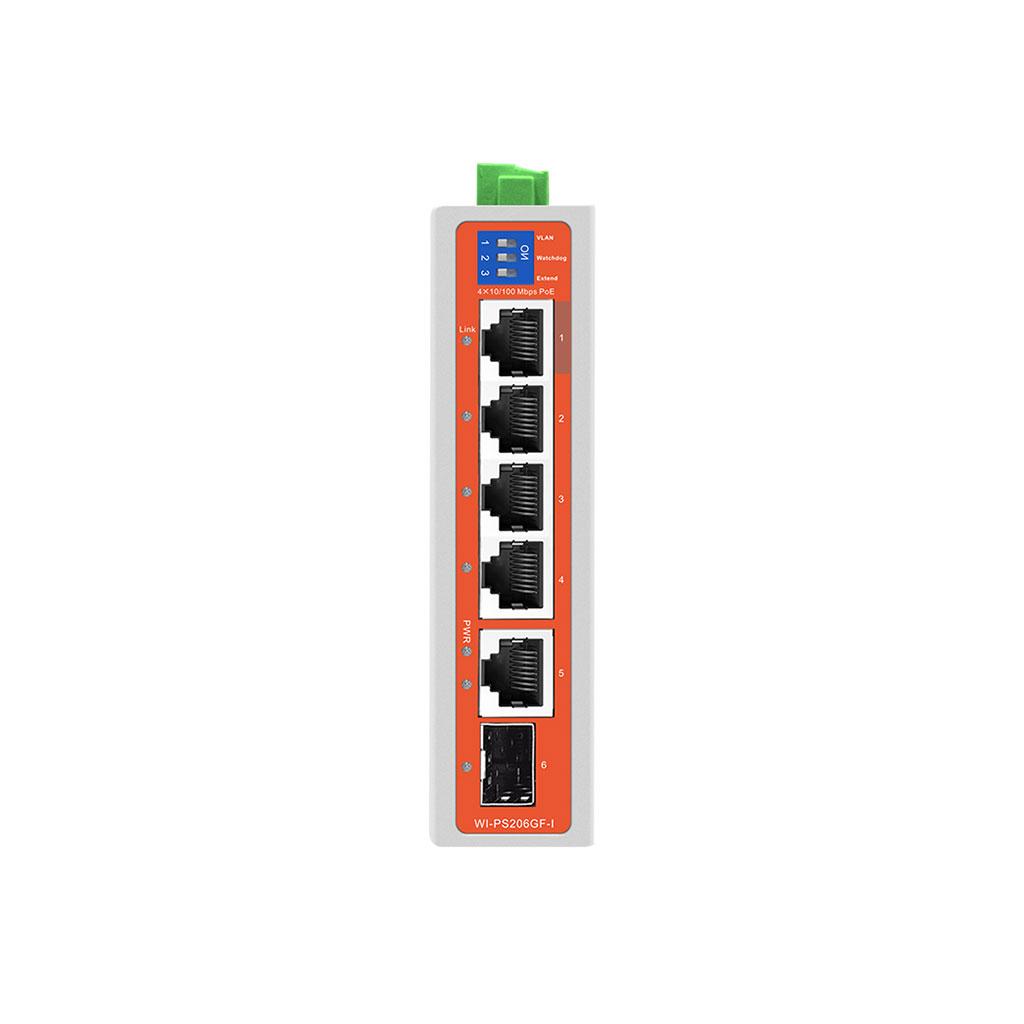

WI-PS206GF-I V2 Индустриальный неуправляемый Poe коммутатор
- В наличии
- Код: WI-PS206GF-I V2
45 200 ₸
+7 (727) 222-33-59
- +7 (702) 215-22-62
возврат товара в течение 14 дней по договоренности
WI-PS206GF-I V2 Индустриальный неуправляемый Poe коммутаторВ наличии
45 200 ₸
Описание
Характеристики
Информация для заказа
ModelWI-PS206GF-IHardware VersionV2InterfacesDownlink Ports4*10/100 Base-TX PoE RJ-45 (Auto-MDI/MDI-X)Uplink Ports1*1000 Base-T RJ451*1000 Base-X SFP SlotPoEPoE StandardPort 1: IEEE 802.3af/at/bt 90W PoE Port 2-4: IEEE 802.3af/at 30W PoEPoE Power Supply TypeEnd-span and Mid-spanPoE Pin Assignment802.3af/at: 1,2 (+), 3,6 (-)802.3af/at/bt: 3, 6, 4, 5 (+), 1, 2, 7, 8 (-)PoE Power Output46~56V DCPoE Ports4Switch PropertyStandardsIEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit EthernetIEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet PlusIEEE 802.3bt Power Over Ethernet Plus PlusForwarding ModesStore and ForwardPacket Buffer1MbitMAC Table8KSwitching Capacity4.8GbpsPacket Forwarding Rate3.57MppsJumbo Frame9216bytesPower SupplyInput VoltagePower 1,2,3 : 48~57V DC (PoE Switch),12~48V DC (Non-PoE Switch)Power ConsumptionFull loading without PoE ≤ 5WPoE power budget ≤ 55WReverse polarity protectionSupportPower Adapter (Included)Input PowerAC 100-240V 50/60HzOutput Power52V 1.25AEnvironmental ReliabilityProtectionSurge Immunity: 6kV/2kVESD Protection: 8kV contact discharge/ 15kV air dischargeOperating Temperature-30℃~65℃Storage Temperature-40℃~85℃Operating Humidity5%~95% (Non-condensation)LED IndicatorsP (Power indicator)Off: the device is power off or failed Green On: the device power on is normalLinkOff: port link down On: ports link upBlinking: data on TX/RXUplink5-6 uplink ports Off: port link downGreen On: port link upGreen Blinking: data on TX/RXDimensions (W*D*H)119*87*30mmNet WeightInstallationDesktop/DIN-rail/wall mountingCertificationsCertificationsCE, FCC, RoHS
| Основные | |
|---|---|
| Производитель | Wi-Tek |
| Пользовательские характеристики | |
| Количество PoE портов | 4 |
| Количество SFP портов | 1 |
| Количество портов 1000Mbps | 2 |
| Количество портов 100Mbps | 4 |
| Тип | Неуправляемый |
- Цена: 45 200 ₸
