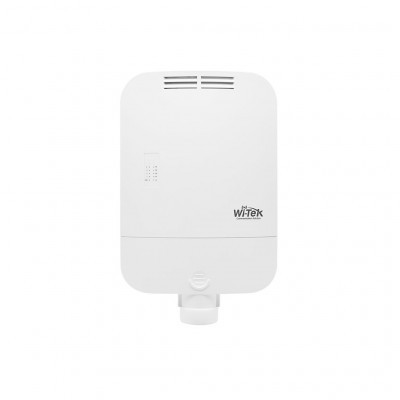

ModelWI-PCMS310GF-OHardware SpecificationsInterface8*10/100/1000Mbps RJ45 Ports and 2 Gigabit SFP SlotsInterface Port StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3atPoE StandardPoE 802.3 af/atPoE Ports8, up to 30WPoE Power Budget110WPower SupplyAC 100-240V 120WStandby Power Consumption10WSwitching Capacity20GbpsPacket Forwarding Rate14.88MppsJumbo Frame10KBMAC Address Table8K, Auto-learning, Auto-agingFan QuantityFanlessRJ45 PoE Power SupplyMode A 1/2(+)3/6(-)Dimensions( W x D x H )300*220*30mmNet weight/gross weight (kg)0.97Kg/1.37KgReset ButtonPress and hold the reset button until all port indicators are on, indicating that the reset is successful.LED indicatorPWR: Off: No Power supply; On: The switch is powered on SYS:Blinking: the system works; Off: the system is starting or has no power 1~8 port: Off: The network is not connected. On: A 10/100/1000M network device is connected. Blinking: Data is being transferred. 9~10 port: Off: No device is connected to the corresponding port. On: Indicates the link through that port is successfully established at 1000Mbps. Blink: Indicates that the Switch is actively sending or receiving data over that port.Protection LevelSurge Protection: Differential mode ±4KV, Common mode ±6KV Electrostatic Standard: Contact ±6KV, Air ±8KV Protection class: IP65Transmission MethodStore— ForwardInstallationPole- MountedEnvironmentOperating temperature/humidity: -30°C ~ 70°C; 10%~90% RH no condensation Storage temperature/humidity: -40~+80°C; 5%~95% RH no condensationCertificationCE, FCC, RoHS ,UKCASoftware FeaturesSpanning TreeIEEE 802.1D -STPIEEE 802.1w -RSTPIEEE 802.1s -MSTPBPDU GuardSTP Root GuardLoop DetectionVLANManagement VLANPrivate VLANVoice VLANMonitor VLANQ-in-QProtocol-Based VLANMAC-Based VLANPortLACPStaticEEEJumbo FrameError-DisablePort mirroring (One-to-One Many-to-One Tx/Rx/Both)Link Aggregation (Up to 8 aggregation groups and up to 8 ports per group)Port IsolationSecurityIEEE802.1x AAAACL support L2+/L3/L4 IPv6 ACLDynamic ARP ProtectionBroadcast StormRADIUS/TACACS+RADIUS Authentication (RFC2138)SSH v1.5/v2.0Anti-DDoS AttackDHCP SnoopingQoSIpv4 QoS (QCEs)Ipv6 QoS (QCEs)Priority Algorithm (WRR,Absolute Priority,DSCP & CS)Class of Service (Port-Based,802.1p, CoS, DSCP, IP Priority, TCP/UDP IPv4/IPv6)Bandwidth (Input /Output)L2 MulticastIGMP Snooping v1/v2/v3MLD Snooping v1/v2MVRIPV6Ipv6/IPv4Ipv6 Web/SSLIpv6 SNTPIpv6 Telnet/SSHIpv6 Ping/TracerouteIpv6 TFTPIpv6 RADIUS/TACACS+Ipv6 SNMPManagementSNMP (v1, v2c, v3)RMON ( 1, 2, 3 & 9 )Firmware UpgradeConfiguration Export/importDHCP Option 82System Log Supports Event/Error LogManage Access Control (Console Port, SNMP, HTTP/HTTPS, Telnet,SSH)LLDP (IEEE802.1AB)LLDP-MEDUDLDDNS ClientTraceroutePingDDMINTP/ SNTP (RFC2030)Advanced FeaturesONVIF (ONVIF Detection, ONVIF Server(NLM) )Batch Firmware UpgradingIntelligent Network MonitoringAbnormal Event WarningsAutomatic Device DiscoverySupport Cloud ManagementSupport Remote ManagementSupport Cloud VLAN Configuration Support Topology DisplaySupport Cloud Control Port Configuration
Основные | |
---|---|
Производитель | Wi-Tek |
Пользовательские характеристики | |
Бренд | Wi-Tek |
Количество PoE портов | 8 |
Количество SFP портов | 2 |
Количество портов 1000Mbps | 10 |
Тип | Управляемый |
- Цена: 95 200 ₸
