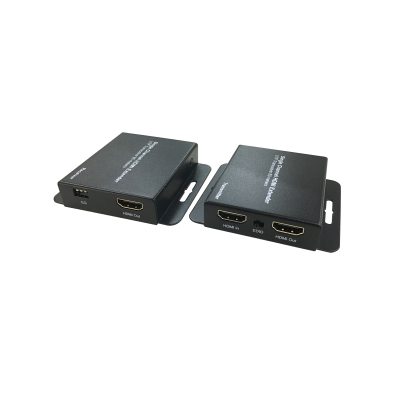

PFM700-E Удлинитель
- В наличии
- Код: PFM700-E
40 250 ₸
+7 (727) 222-33-59
- +7 (702) 215-22-62
возврат товара в течение 14 дней по договоренности
PFM700-E УдлинительВ наличии
40 250 ₸
Описание
Характеристики
Информация для заказа
Model PFM700-E Properties Transmission Signal 1channel HDMI Transmission Distance 50m (max.164ft), with CAT6 of pure copper cable (DC impedance is lessthan 9.5 ohm for every 100 meters (328ft)). Video Transmission Properties Video Signal Input Interface HDMI interface Video Input Port HDMI interface Twisted-pair Video Transmission Port RJ45 port Input Voltage DC5V Power TX<3W, RX<3W HDCP Version Support HDCP1.2 HDMI Version Support 1.3 and lower version Resolution Output Signal Resolution 1080P/1080I/720P/576P/576I/480P/480I Output Voltage 0.5~1.5Vp-p Impedance ESD ±6KV(contact discharge) ±8KV(air discharge) Per: IEC61000-4-2 1995(GB/T 17626.5) Anti-thunder ±2KV(common mode), ±1KV(differential mode) Per: IEC61000-4-5 1995(GB/T 17626.5) Stability MTBF >5000h Physical Properties Dimension(L*W*H) Transmitter: 79.5mmx68mmx16.5mm(port length included)(3.13”x2.68”x0.65”)Receiver: 79.5mmx68mmx16.5mm(3.13”x2.68”x0.65”) Shell Iron Color Black N.W. Transmitter: 133g(0.29lb)Receiver: 133g(0.29lb) Environmental Working Temperature -10℃~55℃(14℉~131℉) Storage Temperature -20℃~80℃(-4℉~176℉) Humidity 0~95%(non-condensing) Certification Certification CE/FCC
| Основные | |
|---|---|
| Производитель | Dahua |
| Пользовательские характеристики | |
| Бренд | Dahua |
- Цена: 40 250 ₸
