Описание
Характеристики
Информация для заказа

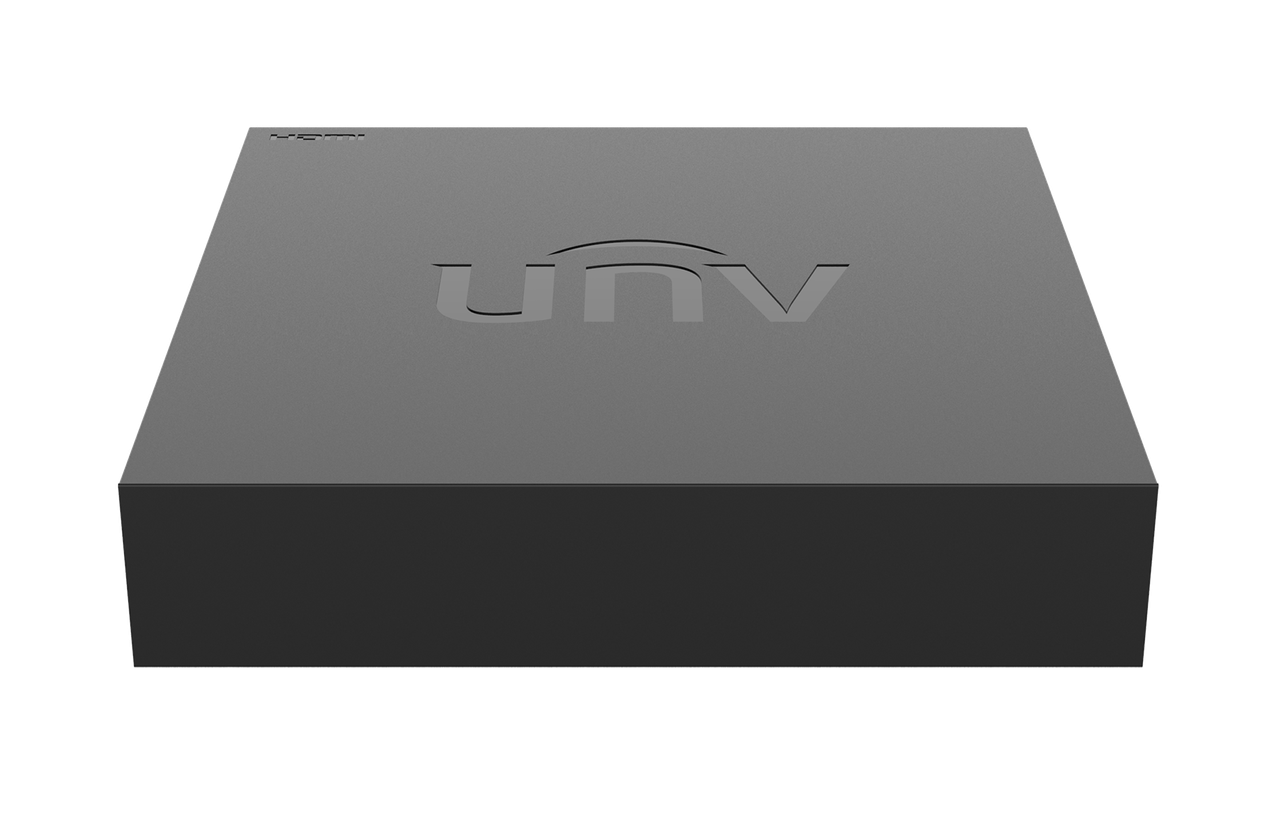

Model XVR301-04F XVR301-08F Video/Audio InputAnalog Video Input4-ch, BNC8-ch, BNCIP Video Input2-ch(only IP up to 6ch), each channel up to 6MP2-ch(only IP up to 10ch), each channel up to 6MPSupported Analog Camera Types Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input Support AHD input: 1080P@30fps 720P@30fps Support TVI input: 1080P@30fps 720P@30fps Support CVI input: 1080P@30fps 720P@30fps Support CVBS input Audio CompressionG.711UVideo/Audio OutputVGA Output1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzHDMI Output1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60HzSynchronous PlaybackHD:4-chSD:4-chHD:8-chSD:8-chLive view displayHDMI/VGA: 1/4/6/8/9HDMI/VGA: 1/4/6/8/9/16NetworkIncoming Bandwidth24Mbps (Up to 32Mbps after all analog channel conversion)24Mbps (Up to 40Mbps after all analog channel conversion)Outgoing Bandwidth48Mbps64MbpsRemote Users128ProtocolsTCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTPBrowserIE(IE10/11) for WindowsFirefox (version 52.0 and above) for WindowsChrome(version 45 and above) for WindowsEdge(version 79 and above) for WindowsEncodingRecording Resolution1080P Lite/720P/D11080P Lite/720P/D1RecordingFrame Rate Main stream Sub stream Main stream Sub stream 1080P Lite@25fpsD1@25fps1080P Lite@15fpsD1@12fps720P@30fpsD1@30fps720P@15fpsD1@15fpsAudio Sample Rate8KHz,16 bit per channelAudio Bit Rate64Kbps per channelDecodingCapabilityAnalog:4 x 1080P Lite@25, 4 x 720P@30IP: 1 x 6MP@20, 2 x 1080P@30Analog:8x 1080P Lite @15, 8x 720P @15IP: 1 x 6MP@20, 2 x 1080P@30Hard DiskSATA1 SATA interfaceCapacityUp to 6TB for each HDDGeneral AlarmGeneral AlarmMotion detectionAlert AlarmIP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot AbnormalExternal InterfaceNetwork Interface1 RJ45 10M/100M self-adaptive Ethernet InterfaceUSB InterfaceRear panel: 2 x USB2.0GeneralPower Supply12V DCPower Consumption: ≤ 10 W( without HDD )Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)Dimensions(W×D×H)190mm × 202mm × 42mm (7.5" × 7.9" × 1.6")Weight ( without HDD )≤0.6 Kg ( 1.32lb )CertificationCertificationUL/CE/FCC /RoHS /WEEE
Основные | |
---|---|
Производитель | Uniview |
Пользовательские характеристики | |
Количество SATA | 1 |
Количество каналов | 4 |
- Цена: 20 100 ₸
