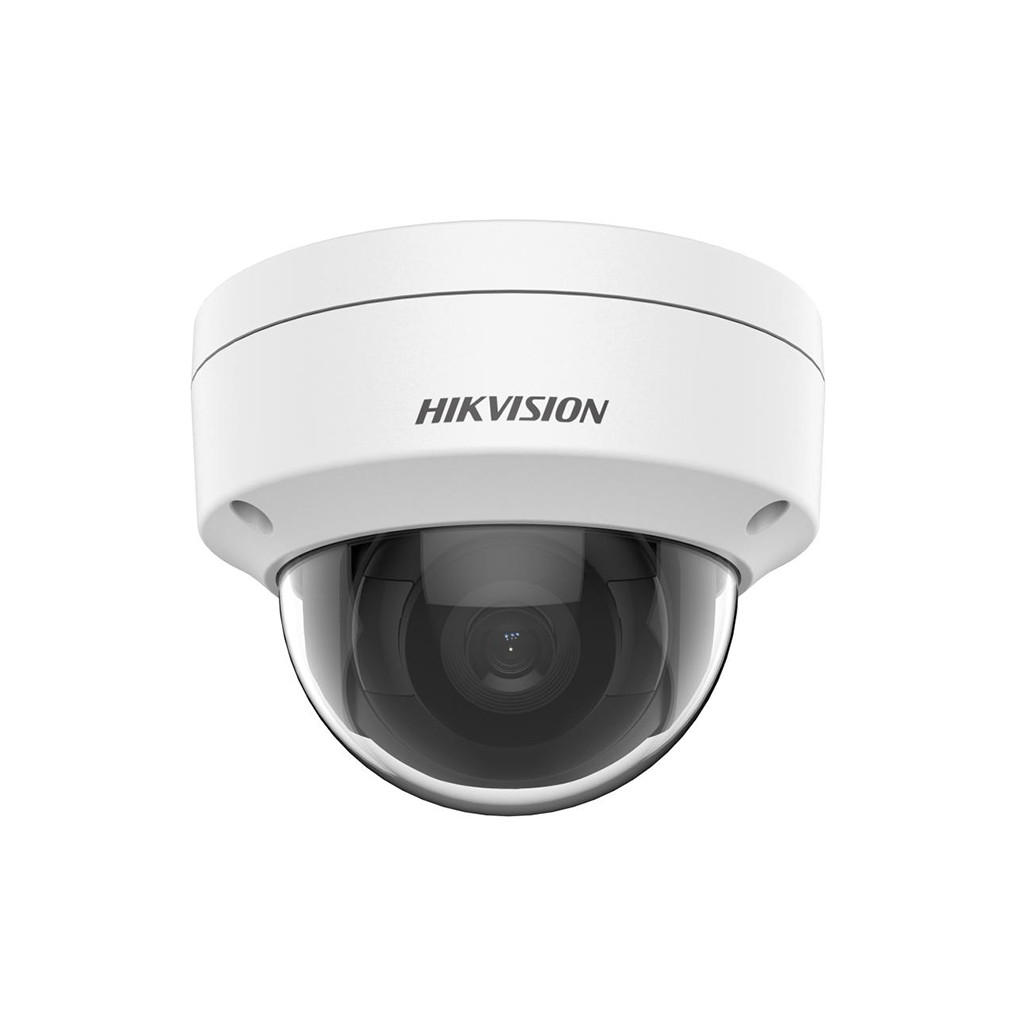

DS-2CD1143G0-I купольная ip видеокамера

Camera Image Sensor1/3" progressive scan CMOSMax. Resolution2560 × 1440Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IRShutter Time1/3 s to 1/100, 000 sDay & NightIR cut filterAngle AdjustmentPan: 0° to 355°, tilt: 0° to 75°LensFocal Length & FOV2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°Lens MountM12FocusFixedApertureF2.0Lens TypeFixed focal lens, 2.8 and 4 mm optionalIris TypeFixedIlluminatorSupplement Light TypeIRSupplement Light RangeUp to 30 mIR Wavelength850 nmSmart Supplement LightYesVideoMain Stream50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 30 fps (1920 × 1080, 1280 × 720)Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)Video CompressionMain stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEGVideo Bit Rate32 Kbps to 8 MbpsH.264 TypeBaseline Profile/Main Profile/High ProfileH.265 TypeMain ProfileRegion of Interest (ROI)1 fixed region for main streamNetworkProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLSSimultaneous Live ViewUp to 6 channelsAPIOpen Network Video Interface, ISAPIUser/HostUp to 32 users. 3 levels: administrator, operator and userClientiVMS-4200, Hik-ConnectWeb BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ImageImage SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browserDay/Night SwitchAuto, Schedule, Day, NightWide Dynamic Range (WDR)120 dBImage EnhancementBLC, 3D DNRInterfaceEthernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet portEventBasic EventMotion detection, video tampering alarm, exceptionLinkageUpload to FTP, notify surveillance center, send emailGeneralPower12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 WDimensionØ111 mm × 82.4 mm (Ø 4.4" × 3.2")Package Dimension134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")WeightApprox. 360 g (0.8 lb.)With Package WeightApprox. 560 g (1.2 lb.)Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)LanguageEnglish, UkrainianGeneral FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filterApprovalEMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)For better user experience, we highly recommend you to update your device to the latest firmware asap.
