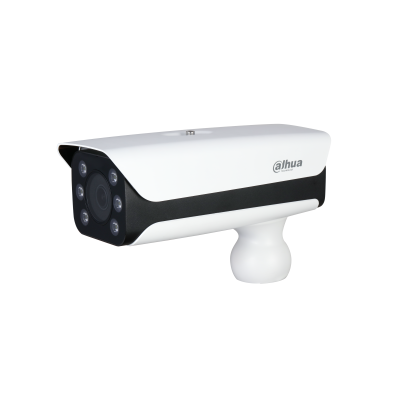

DHI-ITC215-PW6M-LZF-O Камера распознавания номеров

BasicIlluminator Number6 IR illuminators, brightness adjustableImage Sensor1/2.8'' CMOSImage Resolution1920 × 1080 (OSD black strip excluded)Video ResolutionMain stream: 1080P (1920 × 1080)/720P (1280 × 720)Sub stream: 720P (1280 × 720)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240)Video Frame RatePAL: Main stream (1920 × 1080@25fps, 1280 × 720@25fps), sub stream (1280 × 720@25fps, 704 × 576@25fps, 352 × 288@25fps)NTSC: Main stream (1920 × 1080@30fps, 1280 × 720@30fps), sub stream (1280 × 720@30fps, 704 × 408@30fps, 352 × 240@30fps)Bit RateH.264B: 32Kbps–32768KbpsH.264M: 32Kbps–32768KbpsH.264H: 32Kbps–32768KbpsH.265: 32Kbps–32768KbpsMJPEG: 512Kbps–65536KbpsVideo CompressionH.264B/H.264M/H.264H/H.265/MJPEGPicture Encoding FormatJPEGNoise Reduction3DNRWhite BalanceFull auto, auto color temperature range, customized color temperatureElectronic Shutter Speed1/50–1/10000, auto or manualWDR96 dbEdge EnhancementYesExposure ModeFull auto, customized auto, customizedIris ControlAuto iris (W: 1.6–T: 3.3)PerformanceTrigger ModeVideo detection; I/O coil; video detection and I/O coilShutterSingle shutterStorage1 built-in TF card port. Supports Kingston 16G, 32G, 64G, and 128G; Dahua 16G, 32G, 64G, and 128G; SanDisk 16G, 32G, 64G, and 128GImage Tampering PreventionYes. Video/picture can be checked through watermark and verificationField of ViewHorizontal: 108.1° (W)–30.3° (T);Vertical: 56.3° (W)–17.1° (T);Diagonal: 130.9° (W)–34.8° (T)Illumination Distance12 m (39.37 ft)Capture Range3 m–6 m (9.84 ft–19.69 ft)Detected Lane Width3 m –4 m (9.84 ft–13.12 ft)Min Ambient Illuminance0.002 Lux. Illuminator is designed with the camera for illuminationMax Speed that the Camera Detects30 km/hAlarm EventAlarm in the case of no storage card, not enough storage space, storage card error, network disconnection, IP conflict, and illegal accessSecurityAuthorized username and password, MAC address binding, HTTPS encryption, IEEE 802.1x, and network access controlOSD OverlaySupports overlay of time, address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)Automatic Network Replenishment (ANR)Yes. Platform/FTPAuto RegistrationYesIntelligenceVehicle DetectionVehicle capture rate ≥99%Vehicle RecognitionSupports recognizing vehicle type, vehicle logo, vehicle series, vehicle color,license plate, features of driver and front-seat passenger, and vehicle withoutplate. Vehicle recognition rate ≥95%Video MetadataYesIntelligent Track FrameIntelligent frame display. Supports displaying vehicle plate and vehicle pathPortLens MountΦ14Analog Output1Network1 100/1000M Ethernet port (RJ-45)RS-4852RS-2321Alarm Input3, optocoupler input (on-off input)Alarm Output3 ports. 2-channel optocoupler output, 1-channel relay output, which can connect to devices such as barriersAudio Input1-channel RCA portAudio Output1-channel RCA portGeneralPower Supply12V DC, 24V AC, PoE+Power Consumption＜20WOperating Temperature
