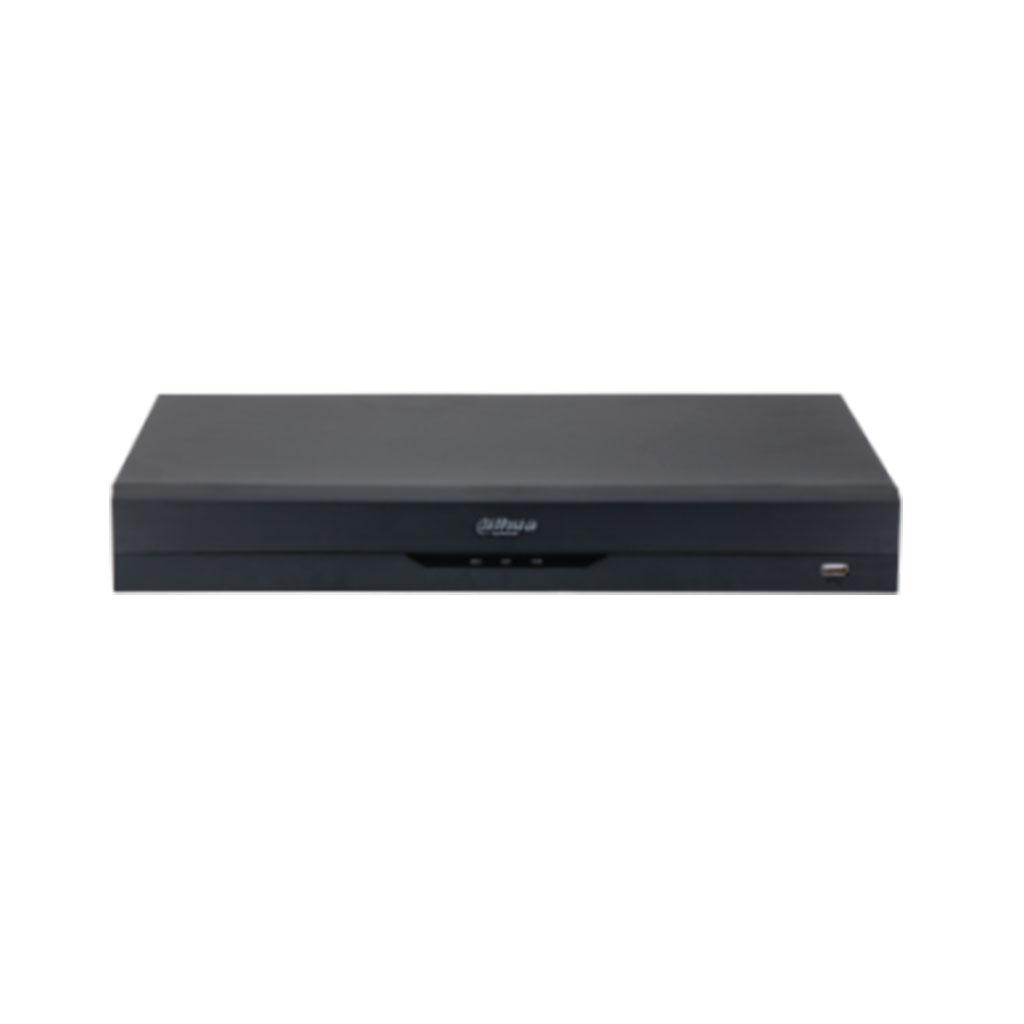

DH-XVR5216AN-4KL-I3 16-канальный HDCVI-видеорегистратор

System Main Processor Industrial-grade processor Operating System Embedded Linux Operating Interface Web; Local GUI Perimeter Protection Perimeter Performance AI by Recorder (Number of Channels) 2 channels, 10 IVS rules for each channel Face Detection Face Attributes Gender; age group; glasses; expressions; face mask; beard Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s) Face Recognition Face Database Capacity Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels SMD Plus SMD Plus by Recorder 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change Audio and Video Analog Camera Input 16 channel BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured. Camera Input 1. CVI: 4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps. 2. TVI: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps. 3. AHD: 4K, 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30fps. IP Camera Input Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) well be disabled. Encoding Capacity Main stream: All channel 4K@(1-7fps); 6MP@(1-10fps); 5MP@(1-12fps); 4K-N/4MP/3MP@(1-15fps); 4M-N/1080P/720P/960H/D1/CIF(1fps–25/30fps); Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps) Dual-stream Yes Video Frame Rate PAL: 1 fps–25 fps.NTSC: 1 fps–30 fps. Video Bit Rate 32 kbps–6144 kbps per channel Audio Sampling 8 kHz, 16 bit Audio Bit Rate 64 kbps Bit Rate Type Video stream and composite stream. Video Output 1 HDMI ,1 VGAHDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16When IP extension mode enabled: 1/4/8/9/16/25/36 Third-party Camera Access Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung Compression Standard Video Compression AI Coding; H.265+; H.265; H.264+; H.264 Audio Compression G.711A; G.711u; PCM Network Network Protocol HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P Mobile Phone Access iOS, Android Interoperability ONVIF 21.06, CGI Browser Chrome, IE9 or above, Firefox Network Mode Single-address mode Recording Playback Record Mode General, motion detection; intelligent; alarm; POS Recording Playback When the AI Function (IVS, FACE) is not enabled:1/4/9/16 When the AI Function (IVS, FACE) is enabled:1/4/9 Backup Method USB device and network Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) Storage Disk Group Yes Alarm General Alarm Motion detection, video loss, tampering, and local alarm Anomaly Alarm No disk, storage error, low space, offline, IP conflict, MAC conflict Intelligent Alarm Face detection, face recognition, perimeter protection Alarm Linkage Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email Ports Audio Input 1-channel RCA (external)16-channel BNC (coaxial audio)
