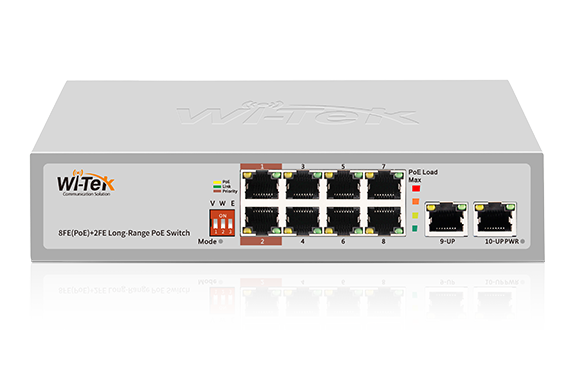

WI-PS210S PoE Коммутатор неуправляемый
- В наличии
- Код: WI-PS210S
17 900 ₸
+7 (727) 222-33-59
- +7 (702) 215-22-62
возврат товара в течение 14 дней по договоренности
WI-PS210S PoE Коммутатор неуправляемыйВ наличии
17 900 ₸
Описание
Характеристики
Информация для заказа
ModelWI-PS206SWI-PS210SWI-PS210GS Hardware Version V1V1V1 Interfaces 4 10/100Mbps RJ45 PoE Ports8 10/100Mbps RJ45 PoE Ports8 10/100/1000Mbps RJ45 PoE Ports Uplink Ports 2 10/100Mbps2 10/100Mbps2 100/1000Mbps PoE Port Port 1-4Port 1-8Port 1-8 PoE Standard Port 1-4: 802.3af/at 30WPort 1-8: 802.3af/at 30WPort 1-8: 802.3af/at 30W PoE Power 30W max per port, 60W Max.30W max per port, 110W Max.30W max per port, 120W Max. Switching Capacity 1.2Gbps2Gbps5.6Gbps Packet Forwarding Rate 0.89Mpps1.49Mpps4.17Mpps Power Supply AC 100-240V, 50/60Hz 65WAC 100-240V, 50/60Hz 120WAC 100-240V, 50/60Hz 120W Power Consumption Idle: 5WPoE: 65W Max.Idle: 10WPoE: 120W Max.Idle: 10WPoE: 120W Max. LED Indication PWR: Solid on: The device power on is normal, Off: The device is power off or failed. PoE: On: PoE is working, Off: PoE not working. Link: On: Data on TX/RX, Off: Ports link down. PoE Load Max: Green On: PoE Power < 25%, Yellow On: 25% < PoE Power < 50%, Orange On: 50% < PoE Power < 75%, Red On: PoE Power > 75%. Independently controlled DIP switch: V(VLAN): All PoE Port isolated each other, W(PoE Watchdog): PoE Watchdog Enable, E(Extend): PoE Extend mode, Transmission Distance 250 meters. Fan Quantity Fanless Switch Dimensions 200x118x44 mm200x118x44 mm200x118x44 mm Package Dimensions 245x190x60 mm245x190x60 mm245x190x60 mm Weight Net Weight: 0.60 kgPackage Weight: 0.95 kgNet Weight: 0.76 kgPackage Weight: 1.06 kgNet Weight: 0.76 kgPackage Weight: 1.09 kg Installation Wall-mount, desktop Surge Immunity IEC 61000-4-5 Common mode 4kV, Differential mode 2kV ESD Protection IEC 61000-4-2 Contact discharge 8kV, Air discharge 15 kV Operating Temperature -10°C ~ 50°C (14°F ~ 122°F) Storage Temperature -40°C ~ 70°C (-40°F ~ 158°F) Operating Humidity 10~90% RH non-condensing Storage Humidity 5~95% RH non-condensing Certification CE, FCC, RoHS, UKCA, RCM
| Основные | |
|---|---|
| Производитель | Wi-Tek |
| Пользовательские характеристики | |
| Количество PoE портов | 8 |
| Количество портов 100Mbps | 10 |
| Тип | Неуправляемый |
- Цена: 17 900 ₸
