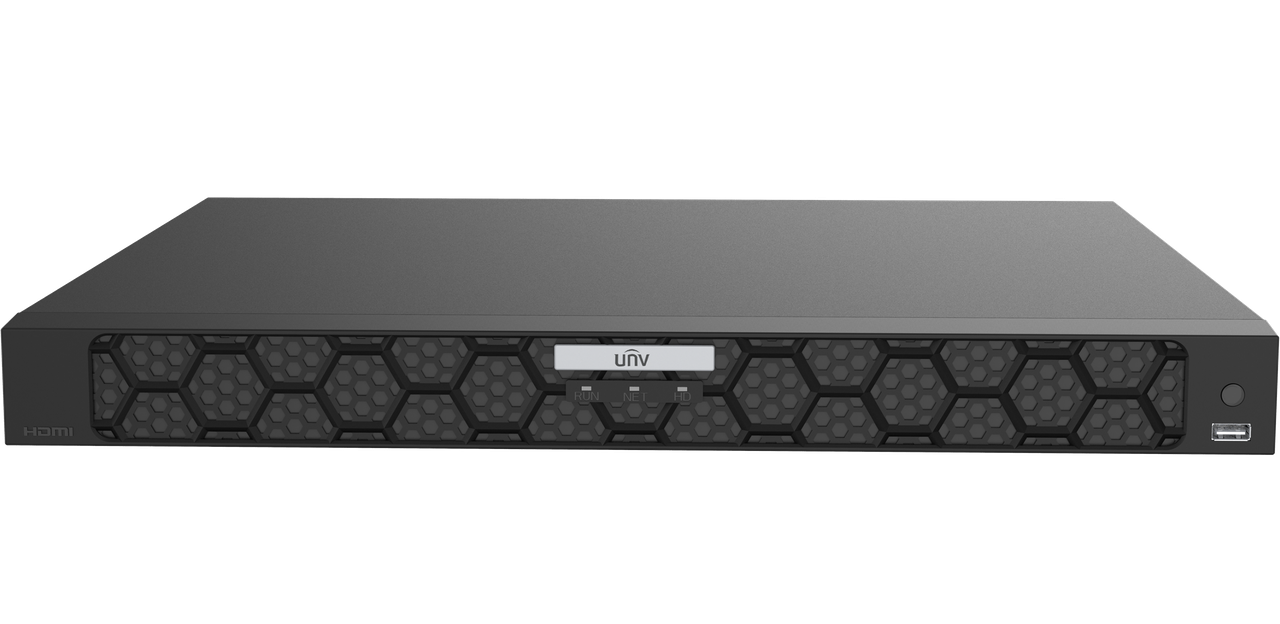

NVR504-16B 16-и канальный IP видеорегистратор

NVR504-16B NVR504-32B Decoding Decoding Format Ultra 265, H.265, H.264 Decoding Capability Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 720P@30 Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 Decoding Capability Description The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width, For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. Audio Compression G.711A, G.711U Network Incoming Bandwidth 320 Mbps Outgoing Bandwidth 160 Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4 Browser(Plugin) IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ Video/Audio Input IP Video Input 16-ch 32-ch RCA Audio Input 1-ch Video/Audio Output HDMI Output 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz VGA Output 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz RCA Audio Output 1-ch Liveview Display 1/4/6/8/9/16 1/4/6/8/9/16/25/32 Corridor Mode Screen 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32 Two-way Audio Two-way Audio 1-ch, RCA (Using the audio input and output) Snapshot FTP/Schedule/Event Snapshot 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) Recording Recording Resolution 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF Synchronous Playback in Local 16-ch Smart VCA Detection by IPC Face Detection, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map Smart by IPC All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring Alarm General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection Alert Alarm IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal GUI Language GUI Language 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian Hard Disk SATA 4 SATA Interfaces Capacity Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) Disk Group Support Redundant Storage Support Disk Array Type RAID 1, 5 External Interface Network Interface 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface USB Front: 1 x USB2.0, Rear panel: 1 × USB2.0, 1 × USB3.0 RS485 1 RS232 N/A Alarm In 16-ch Alarm Out 4-ch Power Supply DC 12 V/5 A Power Switch Support Working Environment Working Temperature -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) Working Humidity ≤ 90% RH (non-condensing) Power Consumption (without HDD) ≤ 20W Dimensions Weight (without HDD) ≤ 3.4Kg (7.50lb) Dimensions 440mm × 344mm × 48mm(17.3"×13.5"×1.9") 440mm × 344mm × 48mm(17.3"×13.5"×1.9") Certification Certification CE; FCC; UL; RoHS; WEEE CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 FCC Part15 Subpart B
