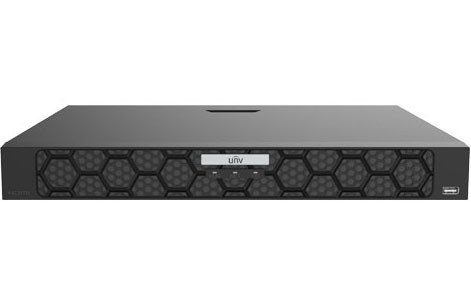

NVR502-16B-P16 16-и канальный IP видеорегистратор

Model NVR502-08B-P8 NVR502-16B-P16 NVR502-32B-P16 Video/Audio Input IP Video Input 8-ch 16-ch 32-ch Audio Input 1-ch, RCA Network Incoming bandwidth 320Mbps Outgoing bandwidth 160Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPV6 Browser IE(IE10/11) for WindowsFirefox (version 52.0 and above) for WindowsChrome(version 45 and above) for WindowsEdge(version 79 and above) for Windows Video/Audio Output HDMI/VGA Output HDMI:4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60VGA:1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60 Recording Resolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Audio Output 1-ch, RCA Two-way Audio 1-ch, RCA(Using the audio input and output) Audio Compression G.711A, G.711U Synchronous Playback 8-ch 16-ch 16-ch Liveview display 1/4/6/8/9 1/4/6/8/9/16 1/4/6/8/9/16/25/32 Corridor Mode Screen 3/4/5/7/9 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32 Snapshot FTP/Schedule/Event Snapshot 4-ch snapshot, up to D1 resolution Decoding Decoding format Ultra 265/H.265/H.264 Live view/Playback 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF Capability Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 Hard Disk SATA 2 SATA interfaces Capacity Up to 10TB for each disk Smart VCA Detection by Camera Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), UMD(Ultra Motion Detection), Video Metadata, Traffic Monitoring VCA Search Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report People Counting People Flow Counting, Crowd Density Monitoring Smart Intrusion Prevention (SIP), Vehicle Detection, UMD, Video Metadata, Traffic Monitoring by Camera Total 8-ch General Alarm General Alarm Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal External Interface Network Interface 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface USB Interface Front: 1 x USB2.0, Rear panel: 1 x USB3.0 RS232 NA RS485 1 Alarm In 8-ch Alarm Out 2-ch PoE Interface 8 RJ-45 10M/100M self-adaptive Ethernet Interface 16 RJ-45 10M/100M self-adaptive Ethernet Interface Max Power Max 30W for single portMax 130W in total Max 30W for single portMax 240W in total Supported Standard IEEE 802.3af/at General Power Supply 100~240V ACPower Consumption: ≤ 20W (without HDD) Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing) Dimensions (W×D×H) 380mm × 322mm × 53mm (15.0"×12.7"×2.1") Weight (without HDD) ≤ 2.6Kg (5.73lb) Certification Certification CE, FCC, UL, RoHS, WEEE CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 FCC Part15 Subpart B
