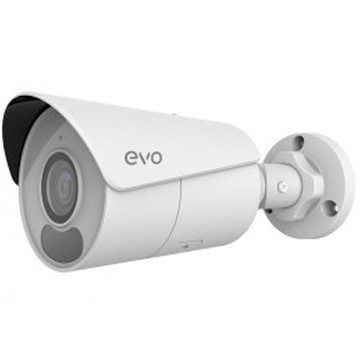

IPC-2128-APF28KM Уличная IP видеокамера

IPC-2128-APF28KM Camera Sensor 1/2.7", progressive scan, CMOS Lens 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.8 42 16.8 8.4 4.2 12 180 72 36 18 Angle of View (H) 108.05°~ 32.59° Angle of View (V) 56.81°~ 18.36° Angle of View (O) 111.91°~36.53° Adjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 70° Rotate: 3° ~ 360° Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Colour: 0.01Lux (F1.8, AGC ON) 0Lux with IR on Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR S/N >52dB IR Range Up to 30m (98ft) IR range Defog Digital Defog WDR 120dB Audio Audio Compression G.711 Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 128GB Network Storage ANR,NAS(NFS) Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fpsSub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; HLC Supported BLC Supported OSD Up to 4 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Motion Detection Up to 4 areas Smart Behavior Detection intrusion(based on human body detection) motion detection, tampering alarm, audio detection Network Protocols IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP, RTMP Compatible Integration ONVIF (Profile S, Profile T, Profile G), API Interface Network 10/100M Base-TX Ethernet Built-in Mic Supported General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 6.0W Dimensions (Ø x H) Ø128 x 100mm (Ø5.0” x 3.9”) Weight 0.56kg (1.23lb) Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection 6KV Ingress Protection IP67 Vandal Resistant IK10 Reset Button Supported
