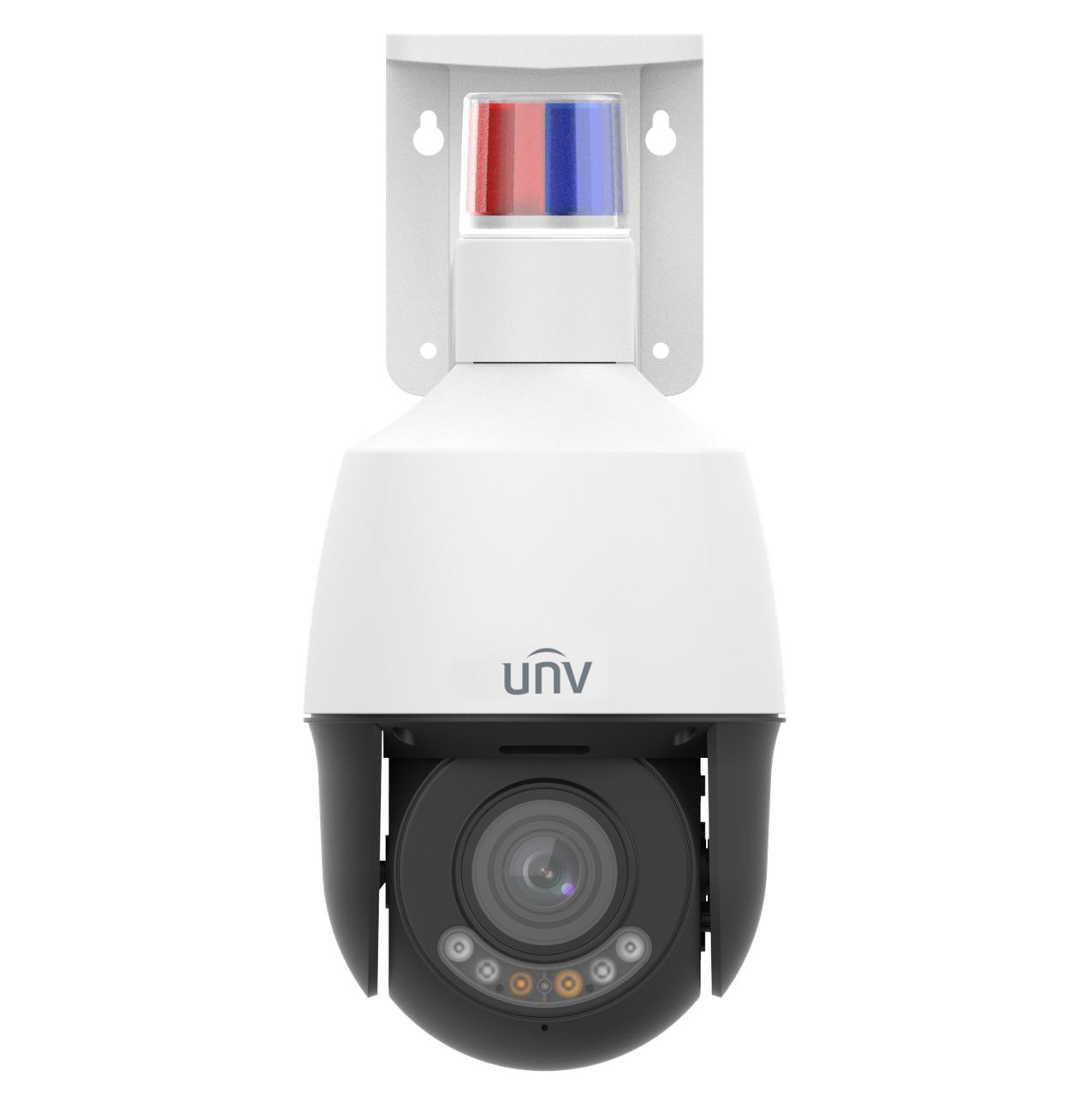

IPC6312LFW-AX5C-VG1 Поворотная PTZ видеокамера

IPC6312LFW-AX5C-VG1 Camera Max Resolution 2 MP Sensor 1/2.8" CMOS Min. Illumination Colour: 0.002Lux (F1.6, AGC ON)0Lux with IR on Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual,1 to 1/100000 s WDR 120 dB S/N >52 dB Lens Focal Length 2.7 to 13.5 mm Optical Zoom 5X Iris F1.6 Field of View (H) 106.6°~31.5° Field of View (V) 56.5°~16.9° Field of View (D) 138.6°~38.7° DORI DORI Distance (Detect) 49.7 m ~ 158.3 m (162.9 ft ~ 519.3 ft) DORI Distance (Observe) 19.9 m ~ 63.3 m (65.2 ft ~ 207.7 ft) DORI Distance (Recognize) 9.9 m ~ 31.7 m (32.6 ft ~ 103.9 ft) DORI Distance (Identify) 5 m ~ 15.8 m (16.3 ft ~ 51.9 ft) Illuminator Illumination Distance (Warm Light) 15 m (49.3 ft) Illumination Distance (IR) 50 m (164.0 ft) Wavelength 850 nm Light On/Off Control Auto/Manual Video Privacy Mask Up to 4 areas Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 2MP (1920*1080), Max 30fpsSub Stream: 720P (1280*720), Max 30fps Video Bit Rate 128 Kbps to 16 Mbps U-code Support ROI Support Video Stream Dual Streams OSD Up to 4 OSDs Image Defog Digital Defog White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 Digital Noise Reduction 2D/3D DNR Flip Normal, Flip Vertical, Flip Horizontal, 180° HLC Support BLC Support Smart IR Support Intelligent Auto Tracking Support, target filtering: human only Smart Intrusion Prevention Cross line detection, Intrusion detection (support false alarm filtering and the classification of human and vehicle) Events Basic Detection Motion Detection, Tampering Alarm, Audio Detection General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U, G.711A Audio Bitrate 128 Kbps Two-way Audio Support Suppression Support Sampling Rate 16KHZ Storage Edge Storage Micro SD, up to 512 GB Network Storage ANR, NAS (NFS) PTZ Pan Range 0° ~ 345° Pan Speed 1°/s～40°/s Tilt Range -10° ~ 100° Tilt Speed 1°/s～30°/s Number of Presets 1024 Preset Patrol 16 patrols, up to 64 presets for each patrol Patrol Stay Time 120 s to 1800 s Home Position Support Network Protocols TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF Client EZStation, UNV-Link, UNV-Link Pro Web Browser Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above Interface Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] Alarm I/O 1/1 Built-in Mic Support Built-in Speaker Support Network 1 × RJ45 10M/100M Base-TX Ethernet Certification EMC CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021) Safety CE LVD (EN 62368-1: 2020+A11: 2020)UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) Environment CE-ROHS (2011/65/EU;(EU)2015/863) Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) General Power DC12V(±25%), PoE(IEEE 802.3at) Power Consumption 18W Power Interface Ø5.5 mm coaxial power plug Dimensions 133 x 185 x 286 mm (Ø 5.2" x 7.3" x 11.3" ) (L x W x H) Weight 788g Working Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤95% RH (non-condensing) Storage Environment -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤95% RH (non-condensing) Surge Protection 2 KV Reset Button Support Web Client Language 22 Languages Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
