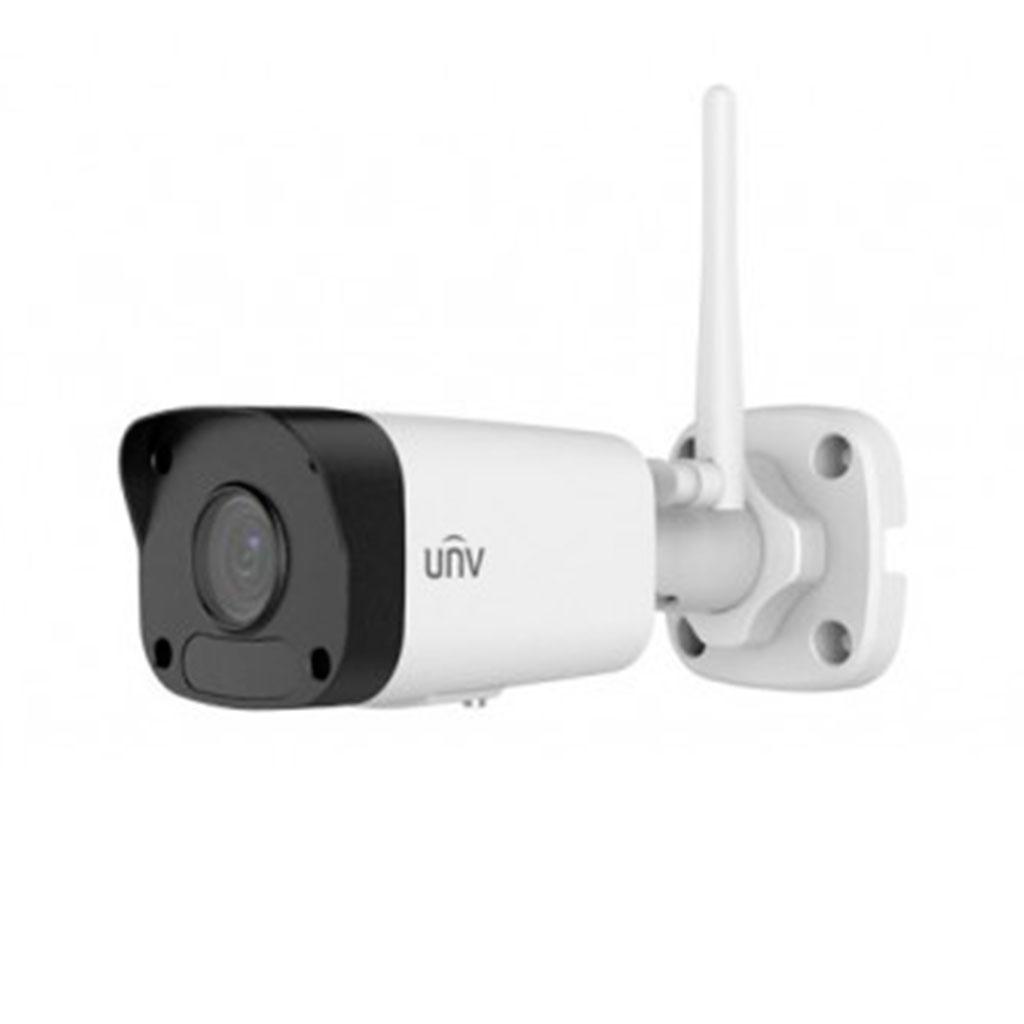

IPC2122SR3-F40W-D Уличная WI-FI камера

IPC2122SR3-F40W-D Camera   Sensor 1/2.7", 2.0 megapixel, progressive scan, CMOS Lens 4.0mm@F2.0 DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m) 4mm 60 24 12 6 Angle of view(H) 86.5° Angle of View (V) 44.1° Angle of View (O) 106.4° Shutter Auto/Manual, 1~1/100000 s Minimum Illumination Colour: 0.02 Lux (F2.0 AGC ON) 0 Lux with IR on Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR S/N >52dB IR Range Up to 30m (98 ft) IR range Defog Digital Defog WDR DWDR Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main Profile Frame Rate Main Stream:2MP (1920×1080): Max. 20 fps; Sub Stream: 720P (1280×720): Max. 20 fps; Third Stream: 4CIF (704×576): Max. 20 fps HLC Supported BLC Supported OSD Up to 4 OSDs Privacy Mask Up to 4 areas ROI Up to 2 areas Motion Detection Up to 4 areas Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,QoS Compatible Integration ONVIF(Profile S, Profile G, Profile T), API Wi-Fi Wireless Standards IEEE802.11b/g/n Frequency Range 2.4 GHz ~ 2.4835 GHz Channel Bandwidth 20 MHz Support Modulation Mode 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS Transmit Power 802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @ 54Mbps 802.11n: 12.5±1.5dBm @150Mbps Receive Sensitivity 802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps (Typical) Transmission Rate 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps Interface Network 1 RJ45 10M/100M Base-TX Ethernet General Power DC 12V±25% Power consumption: Max 5.5 W Dimensions (L × W × H) 162.6 × 62.4 ×62.7 mm (6.4” × 2.5” × 2.5”) Weight 0.25 kg (0.55 lb) Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity: ≤95% RH(non-condensing) Ingress Protection IP67 Reset Button Supported
