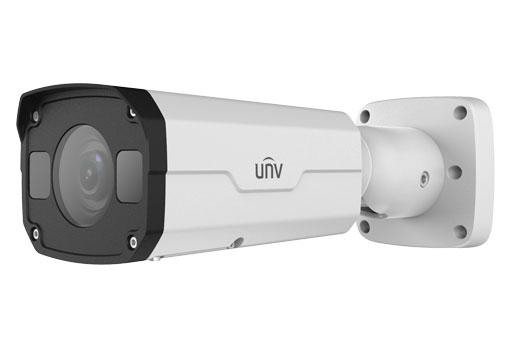

IPC2322EBR5-DPZ28-CCameraSensor1/2.8", 2.0megapixel, progressive scan, CMOSLens2.8~12mm,AF automatic focusing and motorized zoom lensDORI DistanceLens (mm)Detect(m)Observe(m)Recognize(m)Identify(m)2.8451894.512192.977.138.619.3Angle of View(H)94.0° ~ 28°Angle of View (V)56.7°~14.4°Angle of View (O)122.2°~34.4°Adjustment anglePan: 0°~360°Tilt: 0°~90°Rotate: 0°~360°ShutterAuto/Manual, 1~ 1/100000sMinimum IlluminationColour: 0.001Lux (F1.6, AGC ON)0Lux with IR onDay/NightIR-cut filter with auto switch (ICR)Digital noise reduction2D/3D DNRS/N>52dBIR RangeUp to 50m (164ft) IR rangeDefogDigital DefogWDR120dBVideoVideo CompressionUltra 265,H.265, H.264,MJPEG· H.264 code profile · Baseline profile, Main Profile, High Profile Frame RateMain Stream:2MP (1920*1080), Max 30fps;Sub Stream: 2MP (1920*1080), Max 30fps;Third Stream:D1 (720*576), Max30fps 9:16 Corridor ModeSupportedHLCSupportedBLCSupportedOSDUp to 8 OSDsPrivacy MaskUp to 8areasROIUp to 8areasMotion DetectionUp to 4 areasAudioAudio CompressionG.711Two-way audioSupportedSuppressionSupportedSampling Rate8KHZStorageEdge StorageMicro SD, up to 256GBNetwork StorageANRNetworkProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoSCompatible IntegrationONVIF(Profile S, Profile G, Profile T), APIInterfaceAudio I/OAudio cableInput: impedance 35kΩ; amplitude 2V [p-p]Output: impedance 600Ω; amplitude 2V [p-p]Alarm I/O1/1Network1 RJ45 10M/100M Base-TX EthernetGeneralPowerDC 12V±25%, PoE (IEEE 802.3af)Power consumption: Max 9WDimensions (L × W × H)253.4 ×86 ×71.7mm (9.98” × 3.4” × 2.8”)Weight1.0kg (2.2lb)Working Environment-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)Ingress ProtectionIP67
Основные атрибуты | |
---|---|
Производитель | Uniview |
Объектив | |
Тип объектива | Вариофокальный |
Пользовательские характеристики | |
Бренд | Uniview |
Дальность ИК-подсветки | 50 м |
исполнение | Уличное |
Материал корпуса | Металл |
Наличие MicroSD | Да |
Наличие микрофона | Нет |
Объектив | 2.8-12 мм |
Рабочая температура | -35°C до +60°C |
Разрешение | 2 мп |
- Цена: 84 500 ₸
