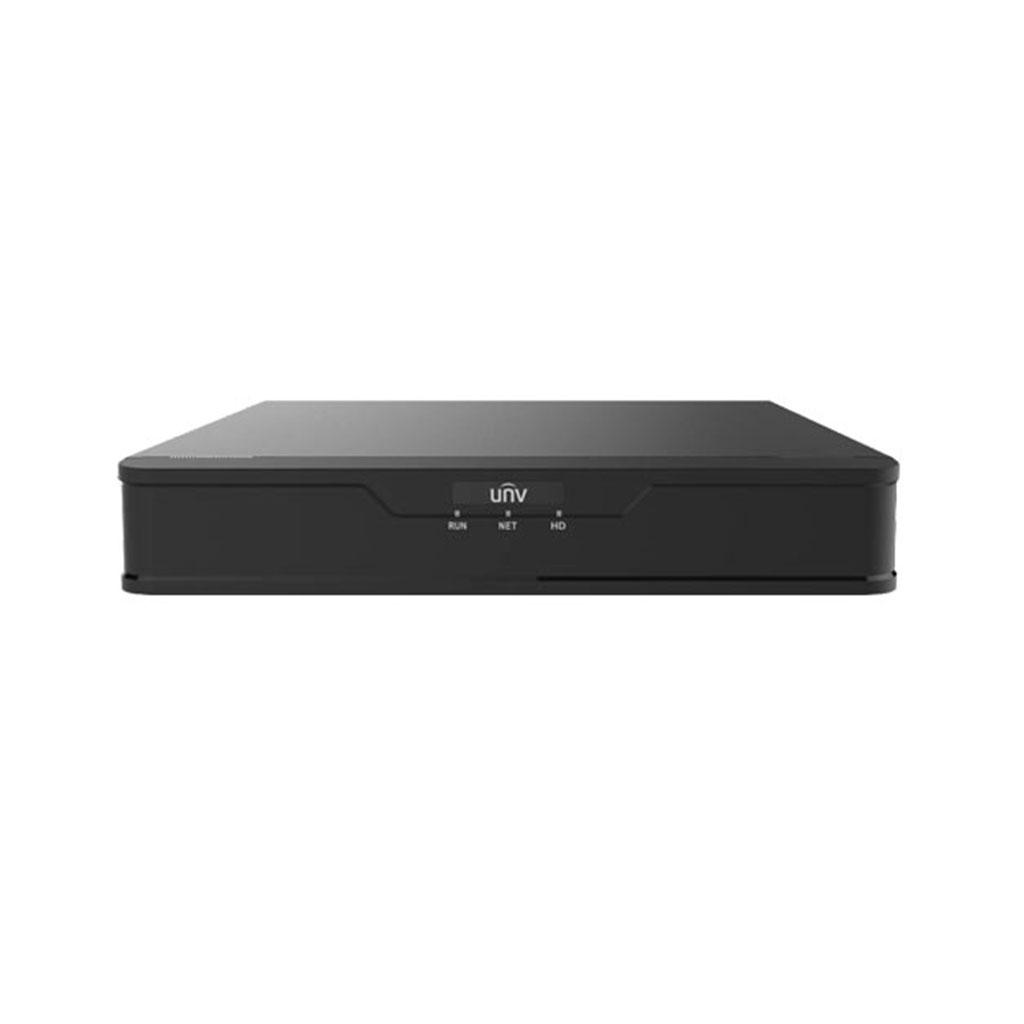

XVR301-04Q 4-х канальный Гибридный видеорегистратор

Гибридный сетевой  4-ех канальный видеорегистратор Uniview AHD/TVI/CVI/CVBS/IP. Видеовыходы на внешние мониторы: HDMI/ VGA Видеовыход: 1 канал BNC, Н.264 Формат сжатия: H.265/H.264 Просмотр:  до 8MP для IP, до 5MP для AHD/TVI до 1080p для CVI Входящий сетевой поток: 40 Мбит/с, исходящий сетевой поток: 60 Мбит/с  Запись: 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF Аудио: 1 канал RCA Удаленных пользователей: 128, одновременный просмотр 4 каналов Поддержка: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE Поддержка HDD дисков: 1 SATA  до 10 Tb Сетевой интерфейс: RJ-45 10M/100M Ethernet USB интерфейс: 2 x USB2.0, 1 x RS485 Питание: 12В/8Вт (блок питания в комплекте) Размеры: 260 мм × 240 мм × 46 мм Вес 1,1 кг Model XVR301-04Q XVR301-08Q Video/Audio Input Analog Video Input 4-ch, BNC 8-ch, BNC IP Video Input 2-ch(only IP up to 6ch),each channel up to 4K 4-ch(only IP up to 12ch),each channel up to 4K Supported Analog Camera Types Support AHD input: 8MP@15fps (channel1)5MP@20fps4MP@30fps3MP@30fps (channel1)1080P@30fps720P@60fps Support TVI input: 8MP@15fps(channel1)5MP@20fps4MP@30fps3MP@20fps (channel1)1080P@30fps720P@60fps Support CVI input: 8MP@15fps(channel1)5MP@20fps4MP@30fps1080P@30fps720P@30fps Support CVBS input Support AHD input: 8MP@15fps(channel1-channel2)5MP@20fps4MP@30fps3MP@30fps (channel1 –channel2)1080P@30fps720P@60fps Support TVI input: 8MP@15fps(channel1-channel2)5MP@20fps4MP@30fps3MP@20fps (channel1 – channel2)1080P@30fps720P@60fps Support CVI input: 8MP@15fps(channel1-channel2)5MP@20fps4MP@30fps1080P@30fps720P@30fps Support CVBS input Audio Input 1-ch, RCA 1-ch, RCA Two-way Audio 1-ch, RCA  1-ch, RCA  Channel Associated Audio 1-ch,RCA 1-ch,RCA Network Incoming Bandwidth 40Mbps 40Mbps Outgoing Bandwidth 60Mbps 64Mbps Remote Users 128 Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE Video/Audio Output CVBS Output 1-ch, BNC 1-ch, BNC VGA Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI Output 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz 1920x1080p/60Hz, 1920x1080p/50Hz,1600x1200/60Hz,1280x1024/60Hz,1280x720/60Hz,1024x768/60Hz Audio Output 1-ch, RCA Synchronous Playback 4-ch 8-ch Encoding Recording Resolution 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF Recording Frame Rate Main stream: 8MP Lite@8fps(channel1）5MPLite@12fps4MP Lite@15fps3MP@15fps(channel1)2MP@15fps720P@30fps Sub stream: D1@30fps(Max) Main stream: 8MP Lite@8fps（channel1-channel2）5MP Lite@12fps4MP Lite@15fps3MP@15fps(channel1 – channel2)2MP@15fps720P@30fps Sub stream: D1@30fps(Max) Hard Disk SATA 1 SATA interfaces Capacity Up to 10TB for each HDD External Interface Network Interface 1RJ45 10M/100M self-adaptive Ethernet Interface USB Interface Rear panel：2 x USB2.0 Serial Interface 1 x RS485 General Power Supply 12V DCPower Consumption: ≤ 8 W( without HDD ) Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) Dimensions(W×D×H) 260mm ×240mm× 46mm (10.2" × 9.4"×1.8") Weight ( without HDD ) ≤1.1 Kg ( 4.19lb )
